from caml.generics.logging import configure_logging
import logging
configure_logging(level=logging.DEBUG)[11/13/25 16:48:46] DEBUG Logging configured with level: DEBUG logging.py:74
InteractiveLinearRegression
In this notebook, we’ll walk through an example of generating synthetic data, estimating treatment effects (ATEs, GATEs, and CATEs) using InteractiveLinearRegression, and comparing to our ground truth.
InteractiveLinearRegression is particularly useful when efficiently estimating ATEs and GATEs is of primary interest and the treatment is exogenous or confounding takes on a particularly simple functional form.
InteractiveLinearRegression assumes linear treatment effects & heterogeneity. This is generally sufficient for estimation of ATEs and GATEs, but can perform poorly in CATE estimation & prediction when heterogeneity is complex & nonlinear. For high quality CATE estimation, we recommend leveraging AutoCATE.
Generate Synthetic Data
Here we’ll leverage the SyntheticDataGenerator class to generate a linear synthetic data generating process, with an exogenous binary treatment, a continuous & a binary outcome, and binary & continuous mediating covariates.
from caml.extensions.synthetic_data import SyntheticDataGenerator
data_generator = SyntheticDataGenerator(
n_obs=10_000,
n_cont_outcomes=1,
n_binary_outcomes=1,
n_binary_treatments=1,
n_cont_confounders=2,
n_cont_modifiers=3,
n_binary_modifiers=2,
stddev_outcome_noise=1,
stddev_treatment_noise=1,
causal_model_functional_form="linear",
seed=10,
)WARNING SyntheticDataGenerator is experimental and may change in future decorators.py:47 versions.
We can print our simulated data via:
data_generator.df| W1_continuous | W2_continuous | X1_continuous | X2_continuous | X3_continuous | X4_binary | X5_binary | T1_binary | Y1_continuous | Y2_binary | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0.354380 | -3.252276 | 2.715662 | -3.578800 | -3.148647 | 0 | 0 | 1 | -11.319410 | 0 |
| 1 | 0.568499 | 2.484069 | -6.402235 | -2.611815 | -0.311498 | 0 | 0 | 1 | 9.167825 | 1 |
| 2 | 0.162715 | 8.842902 | 1.288770 | -3.788545 | -1.780285 | 0 | 0 | 0 | -21.010316 | 0 |
| 3 | 0.362944 | -0.959538 | 1.080988 | -3.542550 | -5.419263 | 1 | 0 | 1 | -2.194239 | 0 |
| 4 | 0.612101 | 1.417536 | 4.143630 | -4.112453 | -4.551051 | 0 | 0 | 1 | -20.600668 | 1 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 9995 | 0.340436 | 0.241095 | -6.524222 | -3.188783 | -2.313515 | 0 | 0 | 1 | 16.349832 | 1 |
| 9996 | 0.019523 | 1.338152 | -2.555492 | -3.643733 | -5.517065 | 0 | 1 | 1 | 5.386195 | 1 |
| 9997 | 0.325401 | 1.258659 | -3.340546 | -4.255203 | -2.272974 | 0 | 0 | 1 | -1.037638 | 0 |
| 9998 | 0.586715 | 1.263264 | -2.826709 | -4.149383 | -2.712932 | 0 | 0 | 1 | -0.235958 | 1 |
| 9999 | 0.003002 | 6.723381 | 1.260782 | -3.660600 | -0.962271 | 0 | 0 | 0 | -20.007912 | 1 |
10000 rows × 10 columns
To inspect our true data generating process, we can call data_generator.dgp. Furthermore, we will have our true CATEs and ATEs at our disposal via data_generator.cates & data_generator.ates, respectively. We’ll use this as our source of truth for performance evaluation of our CATE estimator.
for t, df in data_generator.dgp.items():
print(f"\nDGP for {t}:")
print(df)
DGP for T1_binary:
{'formula': '1 + W1_continuous + W2_continuous', 'params': array([0.00323235, 0.14809798, 0.00393589]), 'noise': array([ 0.41708078, 2.72097405, -0.05882655, ..., 0.53984804,
1.50464572, -0.08231107], shape=(10000,)), 'raw_scores': array([0.6130131 , 0.9436502 , 0.50082704, ..., 0.6447923 , 0.83198225,
0.48696005], shape=(10000,)), 'function': <function SyntheticDataGenerator._create_dgp_function.<locals>.f_binary at 0x7ff6f8d98c10>}
DGP for Y1_continuous:
{'formula': '1 + W1_continuous + W2_continuous + X1_continuous + X2_continuous + X3_continuous + X4_binary + X5_binary + T1_binary + T1_binary*X1_continuous + T1_binary*X2_continuous + T1_binary*X3_continuous + T1_binary*X4_binary + T1_binary*X5_binary', 'params': array([-0.35986539, -3.30656481, -1.08522702, -2.03156347, 4.15748518,
-3.7649075 , 2.0412171 , -4.06259065, 1.19724956, -1.49108621,
-0.33216768, 1.0519125 , -0.68252501, 0.57505328]), 'noise': array([ 0.19963494, -0.500903 , 1.15056187, ..., -1.08977141,
0.79262583, 1.81566293], shape=(10000,)), 'raw_scores': array([-11.31940995, 9.16782505, -21.01031565, ..., -1.03763754,
-0.23595847, -20.00791171], shape=(10000,)), 'function': <function SyntheticDataGenerator._create_dgp_function.<locals>.f_cont at 0x7ff678683be0>}
DGP for Y2_binary:
{'formula': '1 + W1_continuous + W2_continuous + X1_continuous + X2_continuous + X3_continuous + X4_binary + X5_binary + T1_binary + T1_binary*X1_continuous + T1_binary*X2_continuous + T1_binary*X3_continuous + T1_binary*X4_binary + T1_binary*X5_binary', 'params': array([-0.69301323, 0.54152509, 0.39837891, 0.15335688, 0.39980853,
-0.31388112, -0.18490127, 0.25395436, 0.19802621, -0.84703988,
-0.12066193, 0.09225998, 0.37205785, -0.20954318]), 'noise': array([ 1.07352996, 0.43383419, -1.01413765, ..., -1.15478882,
0.58572912, 0.22523345], shape=(10000,)), 'raw_scores': array([0.06237408, 0.99 , 0.75869455, ..., 0.65949716, 0.91015409,
0.77628529], shape=(10000,)), 'function': <function SyntheticDataGenerator._create_dgp_function.<locals>.f_binary at 0x7ff678683d90>}data_generator.cates| CATE_of_T1_binary_on_Y1_continuous | CATE_of_T1_binary_on_Y2_binary | |
|---|---|---|
| 0 | -4.975376 | -0.116864 |
| 1 | 11.283425 | 0.779704 |
| 2 | -1.338690 | -0.070368 |
| 3 | -5.620992 | -0.088495 |
| 4 | -8.402543 | -0.582547 |
| ... | ... | ... |
| 9995 | 9.551022 | 0.857542 |
| 9996 | 0.989622 | 0.391185 |
| 9997 | 5.200762 | 0.679941 |
| 9998 | 3.936641 | 0.602064 |
| 9999 | -0.478977 | -0.111850 |
10000 rows × 2 columns
data_generator.ates| Treatment | ATE | |
|---|---|---|
| 0 | T1_binary_on_Y1_continuous | 1.195965 |
| 1 | T1_binary_on_Y2_binary | 0.152762 |
Running InteractiveLinearRegression
Class Instantiation
We can instantiate and observe our InteractiveLinearRegression object via:
from caml import InteractiveLinearRegression
ilr = InteractiveLinearRegression(
Y=[c for c in data_generator.df.columns if "Y" in c],
T="T1_binary",
G=[
c
for c in data_generator.df.columns
if "X" in c and ("bin" in c or "dis" in c)
],
X=[c for c in data_generator.df.columns if "X" in c and "cont" in c],
W=[c for c in data_generator.df.columns if "W" in c],
xformula="+ W1_continuous**2",
discrete_treatment=True,
)DEBUG Initializing InteractiveLinearRegression with parameters: ols.py:123 Y=['Y1_continuous', 'Y2_binary'], T=T1_binary, G=['X4_binary', 'X5_binary'], X=['X1_continuous', 'X2_continuous', 'X3_continuous'], W=['W1_continuous', 'W2_continuous'], discrete_treatment=True
DEBUG Created formula: Q('Y1_continuous') + Q('Y2_binary') ~ C(Q('T1_binary')) + ols.py:137 C(Q('X4_binary'))*C(Q('T1_binary')) + C(Q('X5_binary'))*C(Q('T1_binary')) + Q('X1_continuous')*C(Q('T1_binary')) + Q('X2_continuous')*C(Q('T1_binary')) + Q('X3_continuous')*C(Q('T1_binary')) + Q('W1_continuous') + Q('W2_continuous') + W1_continuous**2
WARNING InteractiveLinearRegression is experimental and may change in future decorators.py:47 versions.
print(ilr)================== InteractiveLinearRegression Object ==================
Outcome Variable: ['Y1_continuous', 'Y2_binary']
Treatment Variable: T1_binary
Discrete Treatment: True
Group Variables: ['X4_binary', 'X5_binary']
Features/Confounders for Heterogeneity (X): ['X1_continuous', 'X2_continuous', 'X3_continuous']
Features/Confounders as Controls (W): ['W1_continuous', 'W2_continuous']
Formula: Q('Y1_continuous') + Q('Y2_binary') ~ C(Q('T1_binary')) + C(Q('X4_binary'))*C(Q('T1_binary')) + C(Q('X5_binary'))*C(Q('T1_binary')) + Q('X1_continuous')*C(Q('T1_binary')) + Q('X2_continuous')*C(Q('T1_binary')) + Q('X3_continuous')*C(Q('T1_binary')) + Q('W1_continuous') + Q('W2_continuous') + W1_continuous**2
Fitting OLS model
We can now leverage the fit method to estimate the model outlined by ilr.formula. To capitalize on efficiency gains and parallelization in the estimation of GATEs, we will pass estimate_effects=True. The n_jobs argument will control the number of parallel jobs (GATE estimations) executed at a time. We will set n_jobs=-1 to use all available cores for parallelization.
Warning
When dealing with large datasets, setting n_jobs to a more conservative value can help prevent OOM errors.
For heteroskedasticity-robust variance estimation, we will also pass robust_vcv=True.
ilr.fit(data_generator.df, n_jobs=-1, estimate_effects=True, cov_type="HC1")DEBUG Design Matrix Creation completed in 0.06 seconds decorators.py:128
DEBUG Model Fitting completed in 0.02 seconds decorators.py:128
DEBUG Difference Matrix Creation completed in 0.11 seconds decorators.py:128
DEBUG ATE Estimation completed in 0.00 seconds decorators.py:128
DEBUG Prespecified GATE Estimation completed in 0.02 seconds decorators.py:128
We can now inspect the model fitted results and estimated treatment effects:
ilr.params
# ilr.vcv
# ilr.std_err
# ilr.fitted_values
# ilr.residualsarray([[-0.4519221 , 0.43114593],
[ 1.38073585, -0.0744549 ],
[ 2.00450453, -0.01259566],
[-4.04210602, 0.02437893],
[-0.65283268, 0.04810221],
[ 0.49183752, -0.01360602],
[-2.02552124, 0.02571064],
[-1.49027655, -0.10135024],
[ 4.14289136, 0.06712511],
[-0.28916188, -0.05434839],
[-3.76790351, -0.05556488],
[ 1.05912299, 0.03298887],
[-1.63464173, 0.03581225],
[-1.07407314, 0.04467536],
[-1.63464173, 0.03581225]])ilr.treatment_effects.keys()dict_keys(['overall', 'X4_binary-0', 'X4_binary-1', 'X5_binary-0', 'X5_binary-1'])ilr.treatment_effects["overall"]{'outcome': ['Y1_continuous', 'Y2_binary'],
'ate': array([[1.19490455, 0.13807782]]),
'std_err': array([[0.01986595, 0.00783239]]),
't_stat': array([[60.14836561, 17.62907058]]),
'pval': array([[0., 0.]]),
'n': 10000,
'n_treated': 5172,
'n_control': 4828}Here we have direct access to the model parameters (ilr.params), variance-covariance matrices (ilr.vcv]), standard_errors (ilr.std_err), and estimated treatment effects (ilr.treatment_effects).
To make the treatment effect results more readable, we can leverage the prettify_treatment_effects method:
ilr.prettify_treatment_effects()| group | membership | outcome | ate | std_err | t_stat | pval | n | n_treated | n_control | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | overall | None | Y1_continuous | 1.194905 | 0.019866 | 60.148366 | 0.000000e+00 | 10000 | 5172 | 4828 |
| 1 | overall | None | Y2_binary | 0.138078 | 0.007832 | 17.629071 | 0.000000e+00 | 10000 | 5172 | 4828 |
| 2 | X4_binary | 0 | Y1_continuous | 1.336099 | 0.021504 | 62.133499 | 0.000000e+00 | 8536 | 4374 | 4162 |
| 3 | X4_binary | 0 | Y2_binary | 0.134263 | 0.008443 | 15.902456 | 0.000000e+00 | 8536 | 4374 | 4162 |
| 4 | X4_binary | 1 | Y1_continuous | 0.371658 | 0.051932 | 7.156565 | 1.309619e-12 | 1464 | 798 | 666 |
| 5 | X4_binary | 1 | Y2_binary | 0.160322 | 0.021007 | 7.631865 | 4.174439e-14 | 1464 | 798 | 666 |
| 6 | X5_binary | 0 | Y1_continuous | 1.149854 | 0.021556 | 53.342794 | 0.000000e+00 | 8564 | 4430 | 4134 |
| 7 | X5_binary | 0 | Y2_binary | 0.142165 | 0.008438 | 16.848194 | 0.000000e+00 | 8564 | 4430 | 4134 |
| 8 | X5_binary | 1 | Y1_continuous | 1.463574 | 0.051157 | 28.609334 | 0.000000e+00 | 1436 | 742 | 694 |
| 9 | X5_binary | 1 | Y2_binary | 0.113703 | 0.020950 | 5.427234 | 6.721061e-08 | 1436 | 742 | 694 |
Comparing our overall treatment effect (ATE) to the ground truth, we have:
data_generator.ates| Treatment | ATE | |
|---|---|---|
| 0 | T1_binary_on_Y1_continuous | 1.195965 |
| 1 | T1_binary_on_Y2_binary | 0.152762 |
We can also see what our GATEs are using data_generator.cates. Let’s choose X4_binary in 1 group:
data_generator.cates.iloc[
data_generator.df.query("X4_binary == 1").index
].mean()CATE_of_T1_binary_on_Y1_continuous 0.347413
CATE_of_T1_binary_on_Y2_binary 0.177773
dtype: float64Custom Group Average Treatment Effects (GATEs)
Let’s now look at how we can estimate any arbitary GATE using estimate_ate method and prettify the results with prettify_treatment_effects.
custom_gate_df = data_generator.df.query(
"X4_binary == 1 & X2_continuous < -3"
).copy()
custom_gate = ilr.estimate_ate(
custom_gate_df,
group="My Custom Group",
membership="My Custom Membership",
return_results_dict=True,
)
ilr.prettify_treatment_effects(effects=custom_gate)DEBUG Difference Matrix Creation completed in 0.02 seconds decorators.py:128
DEBUG ATE Estimation completed in 0.03 seconds decorators.py:128
| group | membership | outcome | ate | std_err | t_stat | pval | n | n_treated | n_control | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | My Custom Group | My Custom Membership | Y1_continuous | 0.541877 | 0.052269 | 10.367002 | 0.0 | 1197 | 661 | 536 |
| 1 | My Custom Group | My Custom Membership | Y2_binary | 0.184703 | 0.021119 | 8.746004 | 0.0 | 1197 | 661 | 536 |
Let’s compare this to the ground truth as well:
data_generator.cates.iloc[custom_gate_df.index].mean()CATE_of_T1_binary_on_Y1_continuous 0.530934
CATE_of_T1_binary_on_Y2_binary 0.198813
dtype: float64Conditional Average Treatment Effects (CATEs)
Let’s now look at how we can estimate CATEs / approximate individual-level treatment effects via estimate_cate method
Note
The predict method is a simple alias for estimate_cate. Either can be used, but namespacing was created to higlight that estimate_cate / predict can be used for out of sample treatment effect prediction.
cates = ilr.estimate_cate(data_generator.df)
cates[11/13/25 16:48:47] DEBUG Difference Matrix Creation completed in 0.08 seconds decorators.py:128
DEBUG CATE Estimation completed in 0.09 seconds decorators.py:128
array([[-4.96630384, -0.25905625],
[11.3471586 , 0.70608504],
[-1.32992654, -0.05790035],
...,
[ 5.18215613, 0.42039076],
[ 3.91982932, 0.34804847],
[-0.45883511, -0.03503195]], shape=(10000, 2))If we wanted additional information on CATEs (such as standard errors), we can call:
ilr.estimate_cate(data_generator.df, return_results_dict=True)DEBUG Difference Matrix Creation completed in 0.08 seconds decorators.py:128
DEBUG CATE Estimation completed in 0.10 seconds decorators.py:128
{'outcome': ['Y1_continuous', 'Y2_binary'],
'cate': array([[-4.96630384, -0.25905625],
[11.3471586 , 0.70608504],
[-1.32992654, -0.05790035],
...,
[ 5.18215613, 0.42039076],
[ 3.91982932, 0.34804847],
[-0.45883511, -0.03503195]], shape=(10000, 2)),
'std_err': array([[0.02874559, 0.01134792],
[0.04431468, 0.01669346],
[0.02526043, 0.00995281],
...,
[0.02767557, 0.01025595],
[0.02636869, 0.00997712],
[0.02779769, 0.01090012]], shape=(10000, 2)),
't_stat': array([[-172.76749964, -22.82852289],
[ 256.05869601, 42.29711604],
[ -52.6486181 , -5.8174884 ],
...,
[ 187.2465665 , 40.98993518],
[ 148.6546921 , 34.88465475],
[ -16.50623202, -3.21390529]], shape=(10000, 2)),
'pval': array([[0.00000000e+00, 0.00000000e+00],
[0.00000000e+00, 0.00000000e+00],
[0.00000000e+00, 6.15751961e-09],
...,
[0.00000000e+00, 0.00000000e+00],
[0.00000000e+00, 0.00000000e+00],
[0.00000000e+00, 1.31358967e-03]], shape=(10000, 2))}Now, let’s make our cate predictions:
cate_predictions = ilr.predict(data_generator.df)
## We can also make predictions of the outcomes, if desired.
# ilr.predict(data_generator.df, mode="outcome")DEBUG Difference Matrix Creation completed in 0.08 seconds decorators.py:128
DEBUG CATE Estimation completed in 0.09 seconds decorators.py:128
Let’s now look at the Precision in Estimating Heterogeneous Effects (PEHE) (e.g., RMSE) and plot some results for the treatment effects on each outcome:

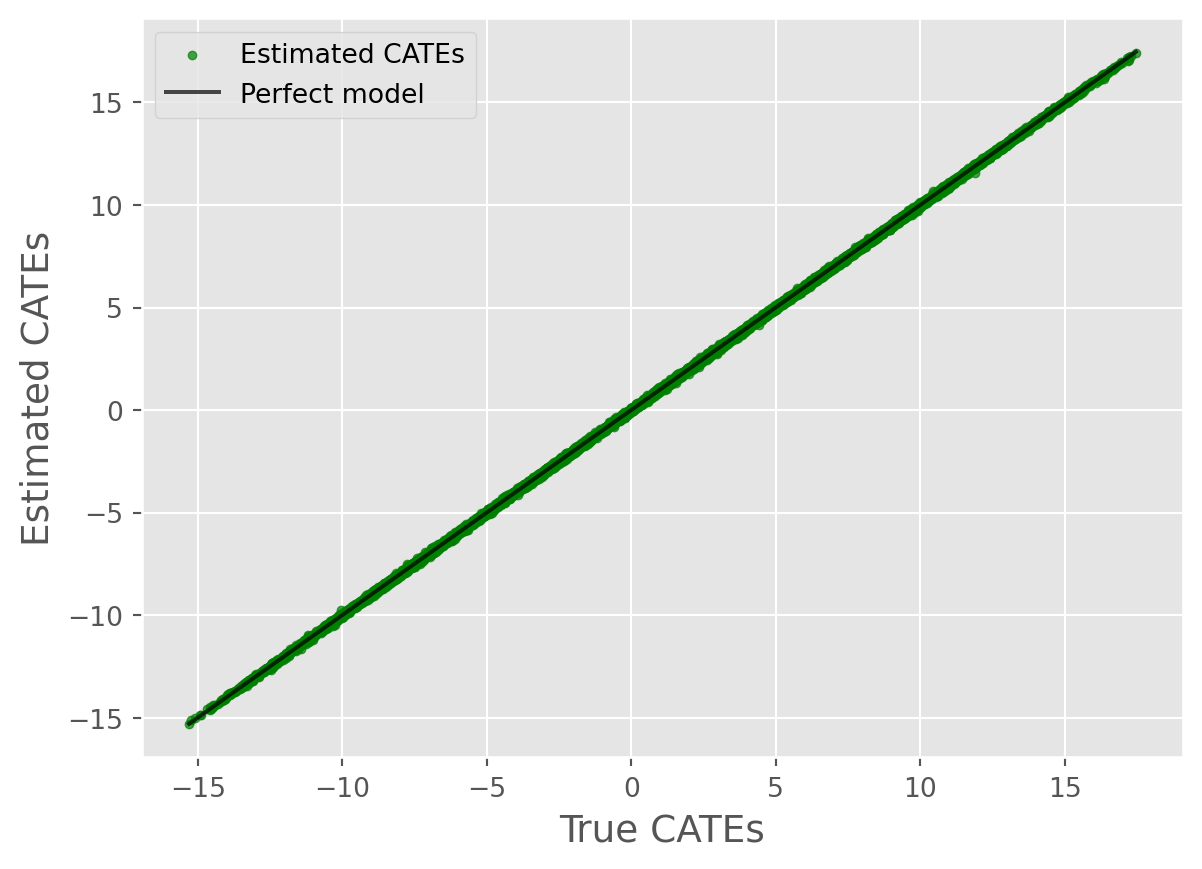

Effect of binary T1 on continuous Y1
from sklearn.metrics import root_mean_squared_error
from caml.extensions.plots import (
cate_true_vs_estimated_plot,
cate_histogram_plot,
cate_line_plot,
)true_cates1 = data_generator.cates.iloc[:, 0]
predicted_cates1 = cate_predictions[:, 0]
root_mean_squared_error(true_cates1, predicted_cates1)0.054197542640946cate_true_vs_estimated_plot(
true_cates=true_cates1, estimated_cates=predicted_cates1
)

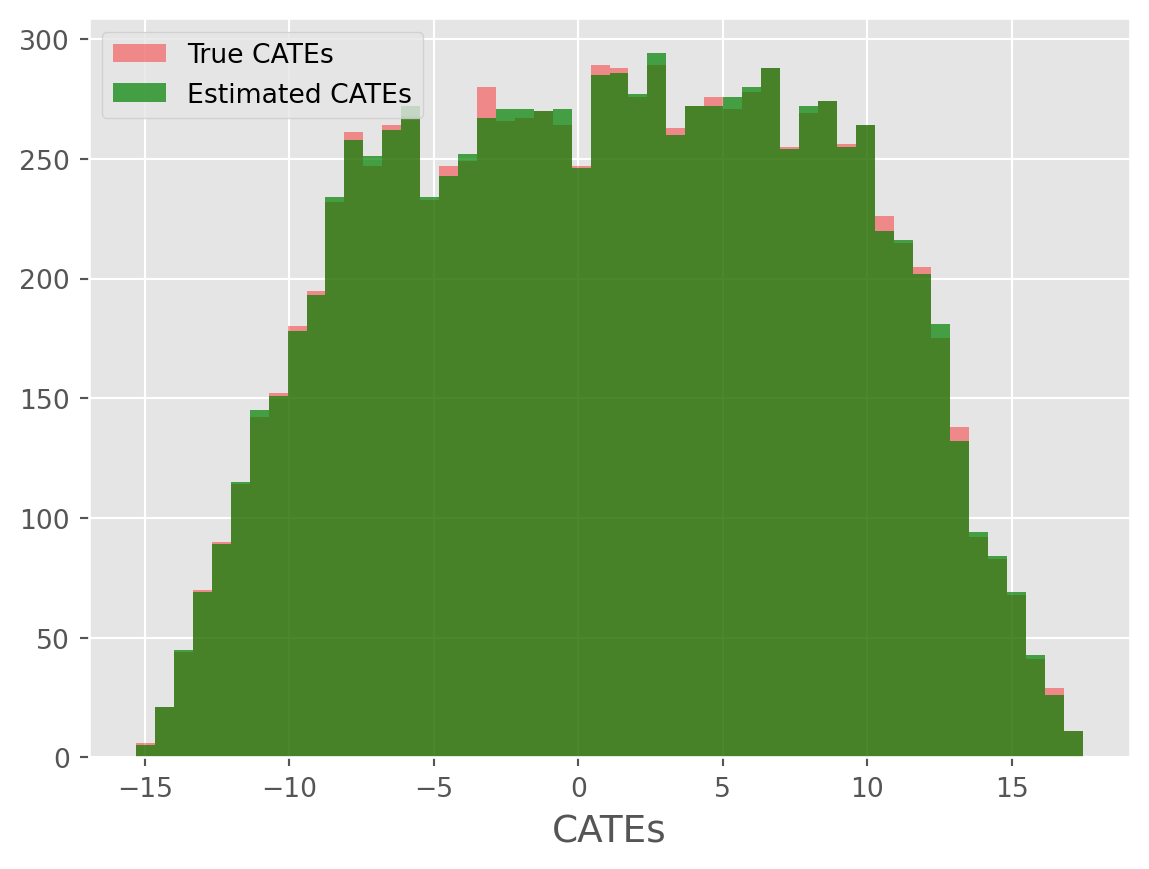

cate_histogram_plot(true_cates=true_cates1, estimated_cates=predicted_cates1)

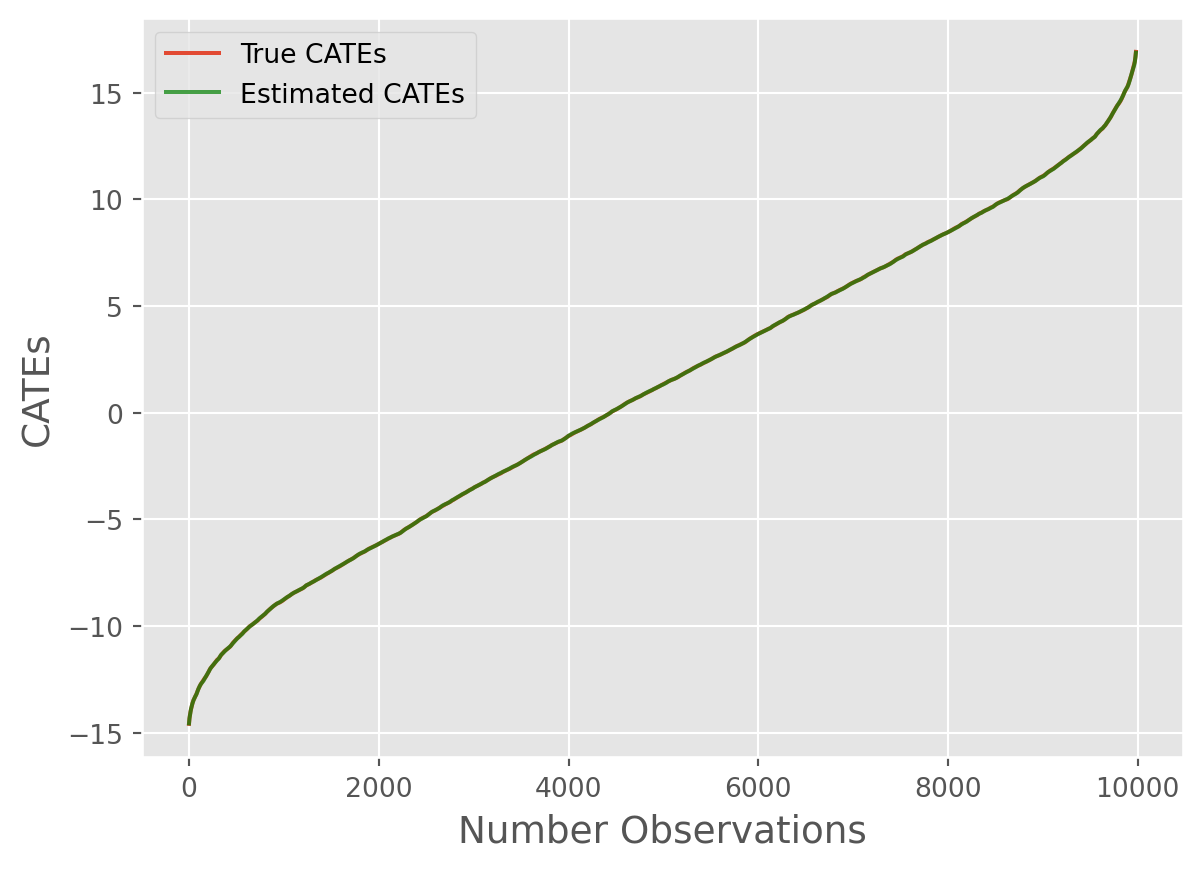

cate_line_plot(
true_cates=true_cates1, estimated_cates=predicted_cates1, window=20
)

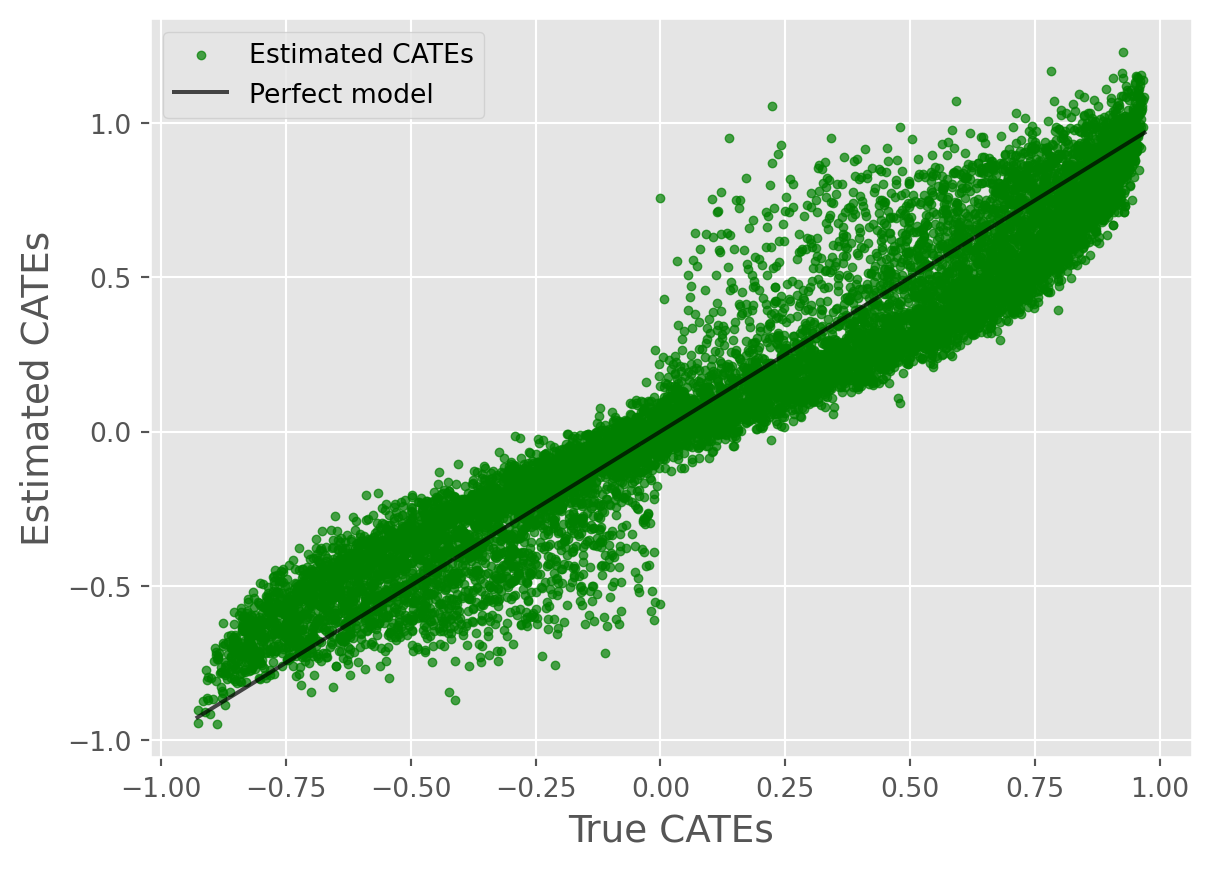

Effect of binary T1 on binary Y2
true_cates2 = data_generator.cates.iloc[:, 1]
predicted_cates2 = cate_predictions[:, 1]
root_mean_squared_error(true_cates2, predicted_cates2)0.15683038625127854cate_true_vs_estimated_plot(
true_cates=true_cates2, estimated_cates=predicted_cates2
)

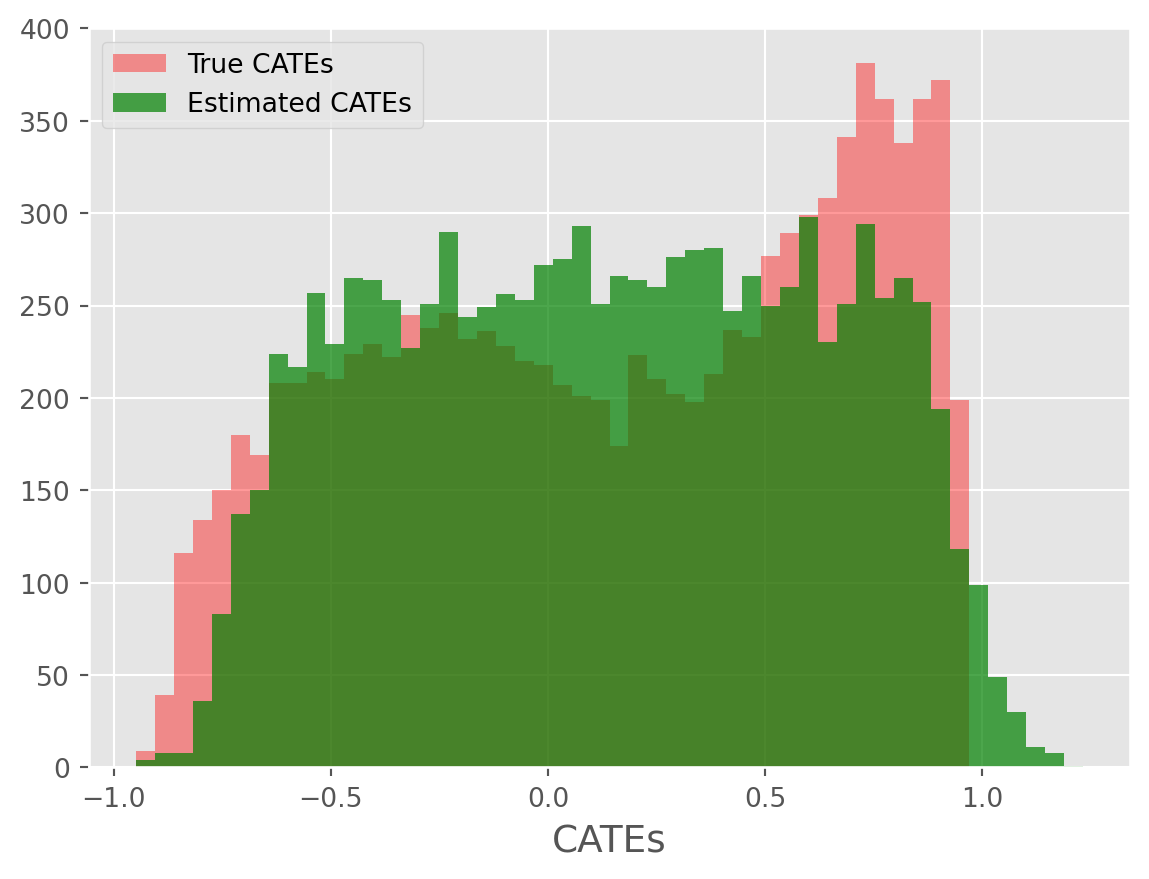

cate_histogram_plot(true_cates=true_cates2, estimated_cates=predicted_cates2)

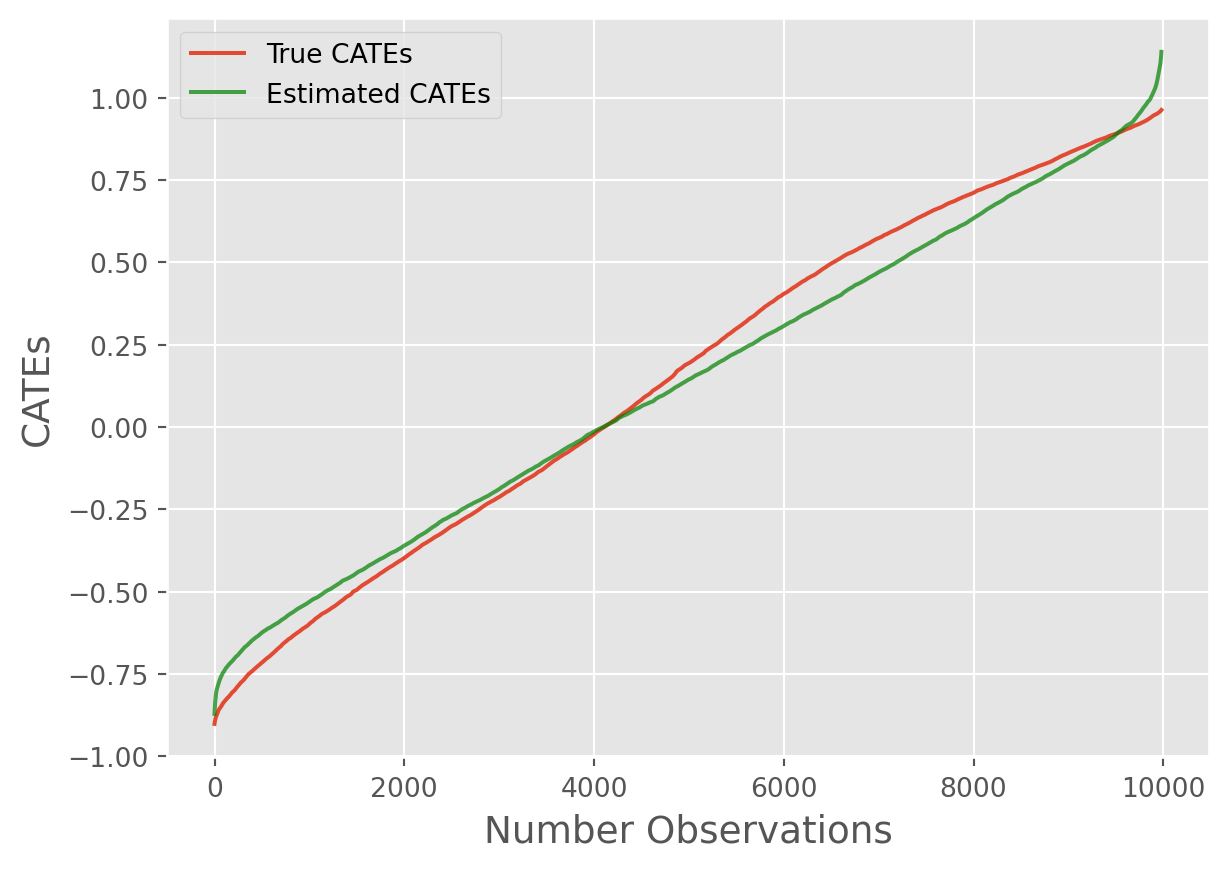

cate_line_plot(
true_cates=true_cates2, estimated_cates=predicted_cates2, window=20
)
Note
The CATE estimates for binary outcome using simulated data may perform poorly b/c of non-linear transformation (sigmoid) of linear logodds. In general, InteractiveLinearRegression should be prioritized when ATEs and GATEs are of primary interest. For high quality CATE estimation, we recommend leveraging AutoCATE.
